CCD R4 產品詳細頁Banner

CCD






產品描述圖1
產品描述圖2
產品描述圖3

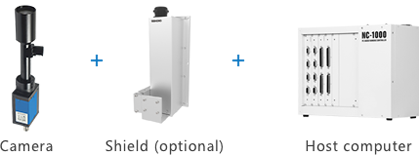

Product Configuration

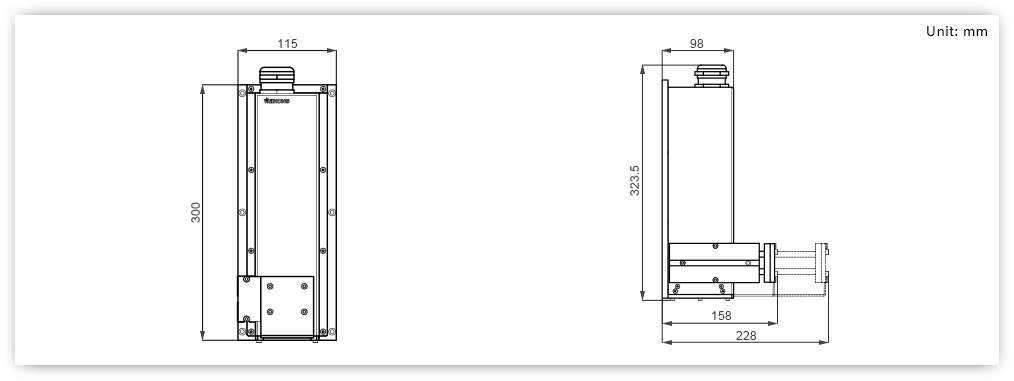

Mounting Dimension
Specification Parameter

CNC Specifications

Number of Axes Supported
3-12 axes

Hardware Specifications

RAM
1G

Storage
32G SSD

USB Interface
USB2.0

Network Interface
1000Mbps

Vedio Output Interface
VGA,touch screen supported

I/O
120/O48

Pulse Frequency
1MHZ

Performance Indicator
The product stands EMI/Electrical fast transient immunity/Surge immunity tests and conforms to the fourth grade protection standards of GB/T 17626.5-2008.
Resistance to vibration conforms to the GB/T 2423.10-2008 Standards.
The product stands rigid temperature tests and conforms to the industrial standards of GB/T 2423.102-2008.

Spindle

Analog Voltage Output
0-10V

Tool Measurement

Tool Measurement Mode
Auto measurement,Manual measurement

Tool Measurement Type
Fixed calibration,Mobile calibration,First calibration&Calibration after tool change

Compensation

Compensation Type
Workpiece compensation,Screw error compensation,Backlash compensation,AQE compensation,Tool compensation

Communication

Internet(Ethernet)
LAN communication,Front USB interface,Two-way transmission between the system and PC

Toolpath File

Supported File Format
*.g/*.nc/*.u??/*.demo/*.iso/*.eng/*.cut/*.dxf/*.plt/*.txt

Operations

WCS
Supporting WCS G54-G59 and extended WCSs

Processing Technology
Two-mark/ Three-mark photo mode, Offset compensation, Max. offset detection, CCD setting, Array function, Template matching pattern selection, Image match accuracy

Convenient Operation
Focal setting, Offset measurement, Scale override setting, Photo delay setting, Program editing, CCD enabled/disabled and Simulation machining

CCD Type

Number of CCD
Single CCD,Dual-CCD

Hihg-speed High-precision Optimization

Interpolation Algorithms;
